Retrofitting in Oil Production

How can horizontal oil drilling be controlled and monitored more precisely? DV8 Energy demonstrates how Revolution Pi enables complex mathematical algorithms for real-time analysis of wellbore conditions, thereby further optimizing production performance.

Retrofitting in Oil Production – Oil production plant

Challenge

Continuous real-time monitoring of wellbores is crucial for economical and efficient oil production. Horizontal or deviated wells, thousands of meters below the earth's surface, present a particular challenge. While standard procedures work well for vertical wells, these modern horizontal wells require significantly more sophisticated mathematical tools. The technical platform needed to execute complex algorithms in C, enable cloud updates, and be industry-grade and temperature-resistant – requirements that a conventional PLC cannot meet.

Canadian company DV8 Energy combines expertise in rod pump physics, advanced mathematics, and IIoT technologies to bring together operators, production engineers, and computer scientists to unlock their collective potential.

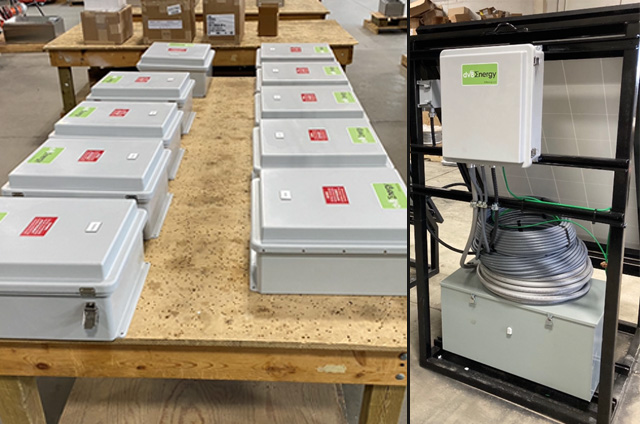

Several finished ‘Edge POC’ boxes are waiting to be used
Several finished ‘Edge POC’ boxes are waiting to be used.

Solution

DV8 Energy developed a revolutionary mathematical solution for rod-pumped wells. With the "Edge POC" retrofit box, equipped with the RevPi Core and the analog expansion module RevPi AIO, the system calculates wellbore conditions in real-time.

It analyzes critical parameters such as fluid level, pump intake pressure, dynamic rod stress, pump fillage, gas formation, gearbox torque, and emulsion production directly at the wellhead.

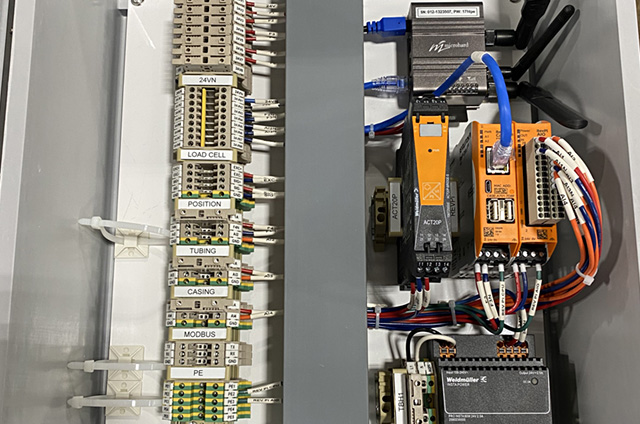

View inside the ‘Edge POC’ retrofit box with the RevPi Core and RevPi AIO installed
A look inside the ‘Edge POC’ retrofit box.

Implementation

The "Edge POC" is integrated into a frequency converter or control cabinet. The RevPi AIO module, with its 24-bit ADC, captures data from load cells, position sensors, and pressure and temperature transducers at 160 Hz. A custom software image enables simple setup and cloud connectivity. Each pump cycle is transmitted to the cloud for analysis. Control is managed through the Props Field Portal software.

Technologies used:

  • RevPi Core for algorithm processing
  • RevPi AIO with 24-bit ADC
  • Modbus TCP communication
  • Cloud connectivity for updates
  • Props Field Portal software
  • Custom software image

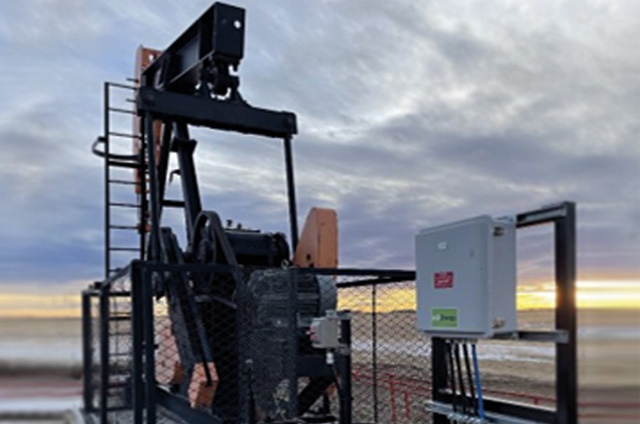

Installed Edge-POC box on site.
Installed Edge-POC box on site.

Results & Outlook

The RevPi-based system has already saved production and operations teams millions of dollars through performance and efficiency improvements. The solution simplifies the setup and maintenance of remote oilfield locations through automatic programming and diagnostics of drives and measuring devices.
