This example demonstrates how to exchange I/O data between a RevPi CODESYS application and an external Node-RED application using a RevPi virtual device.

Prerequisites #

Hardware #

✓ 1 RevPi Connect

For detailed instructions about how to set up your system, see Getting Started.

Software #

✓ CODESYS Development System installed on your PC
✓ Node-RED and RevPi Nodes Server enabled
You can use the Cockpit application on the RevPi to install Node-RED.

✓ Web browser (for accessing the Node-RED interface and PiCtory)

To ensure a compatible system with suitable software, see Software Compatibility.

Overview #

We use CODESYS Control for Linux Arm/ARM64 and Node-RED RevPi Nodes Server on a RevPi Connect. The CODESYS application includes a virtual RevPi device with 32-byte inputs and outputs that interact with a Node-RED application via the Node-RED RevPi Nodes Server.

Step 1: Creating a Basic Flow in Node-RED #

▷ Start Node-RED.

▷ Run the following command on Terminal to install the node-red-dashboard package:

npm install node-red-dashboard

Alternatively, you can install node-red-dashboard by performing the following steps:

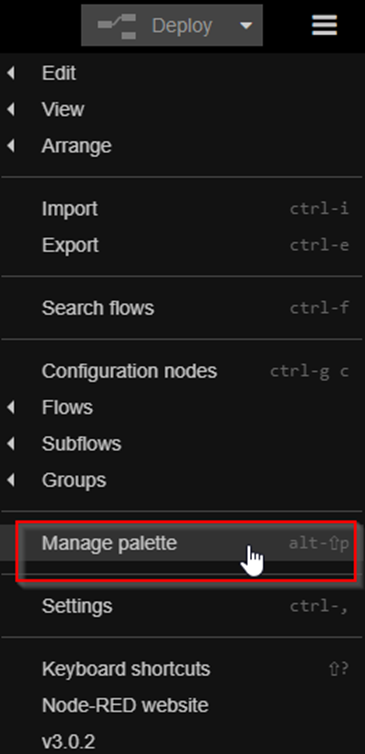

▷ Select the Manage palette option in the Node-RED Dashboard menu.

Node-red Dashboard

▷ Select the Install tab.

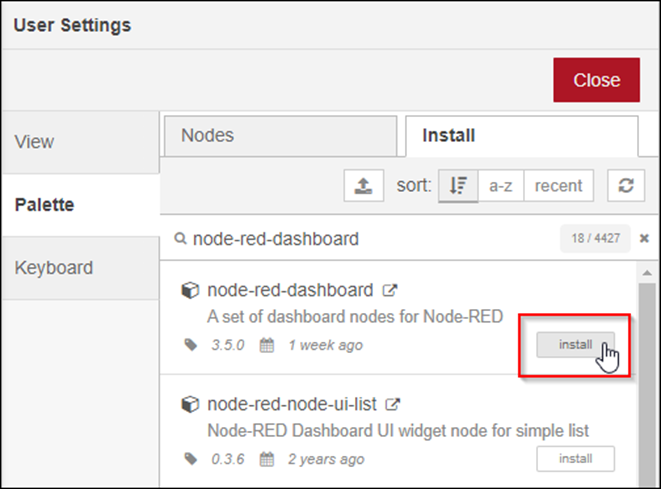

▷ Select install for the node-red-dashboard node.

Node-red Dashboard

❯ A number of nodes are now available in Node-RED that you can use to create a real-time data dashboard. You can find them on the Nodes tab.

Step 2: Importing the RevPi CODESYS Node-RED.json Flow in Node-RED #

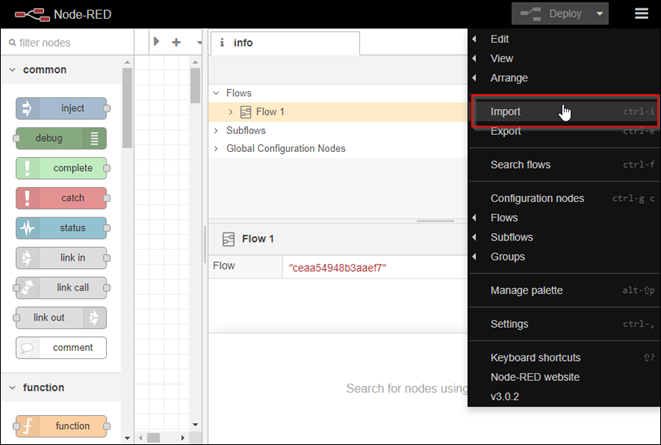

▷ Select the Import.

Node-red Dashboard

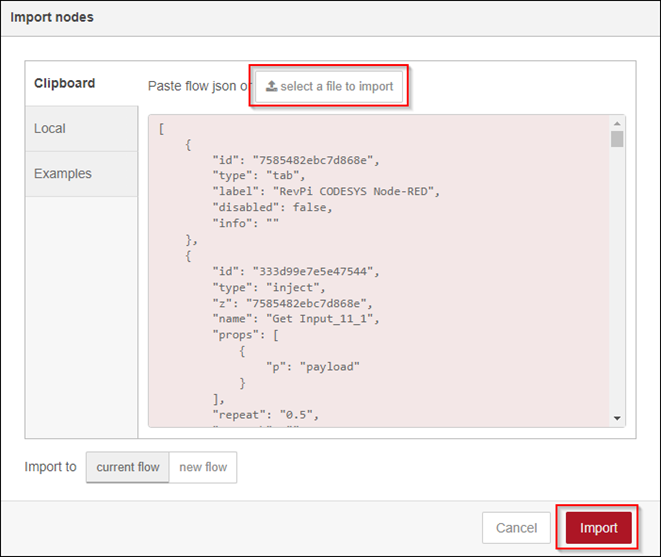

▷ Select select a file to import and open the file *RevPi CODESYS Node-RED.json in the Examples directory.

▷ To create the project as a new flow, select for Import to the new flow button.

▷ Select Import.

Node-red Dashboard

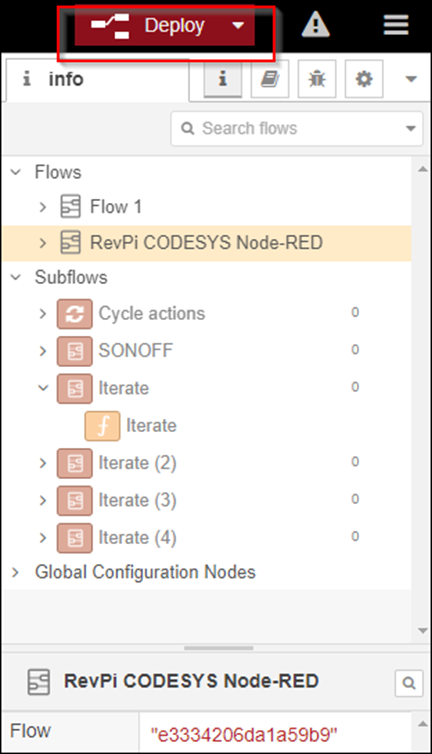

▷ To launch the application on the Node-RED server, select Deploy.

Node-red Dashboard

Step 3: Setting Up the CODESYS Project #

▷ Create the RevPi CODESYS Node-RED project from the Examples directory and download it to the RevPi Connect running CODESYS Control for Linux ARM SL and Node-RED RevPi Nodes Server.

CODESYS

Application Functionality #

  1. CODESYS to Node-RED Data Flow:

    • The CODESYS application writes the values [1 ... 32] to the 32 output bytes (Q_Virtual) of the virtual RevPi device.

  2. Node-RED to CODESYS Data Flow:

    • The Node-RED application reads these 32 input bytes from the virtual RevPi device’s address space.

    • It then writes them back to the output address space of the virtual RevPi device.

  3. Visualizing Data:

    • In CODESYS Online Mode:

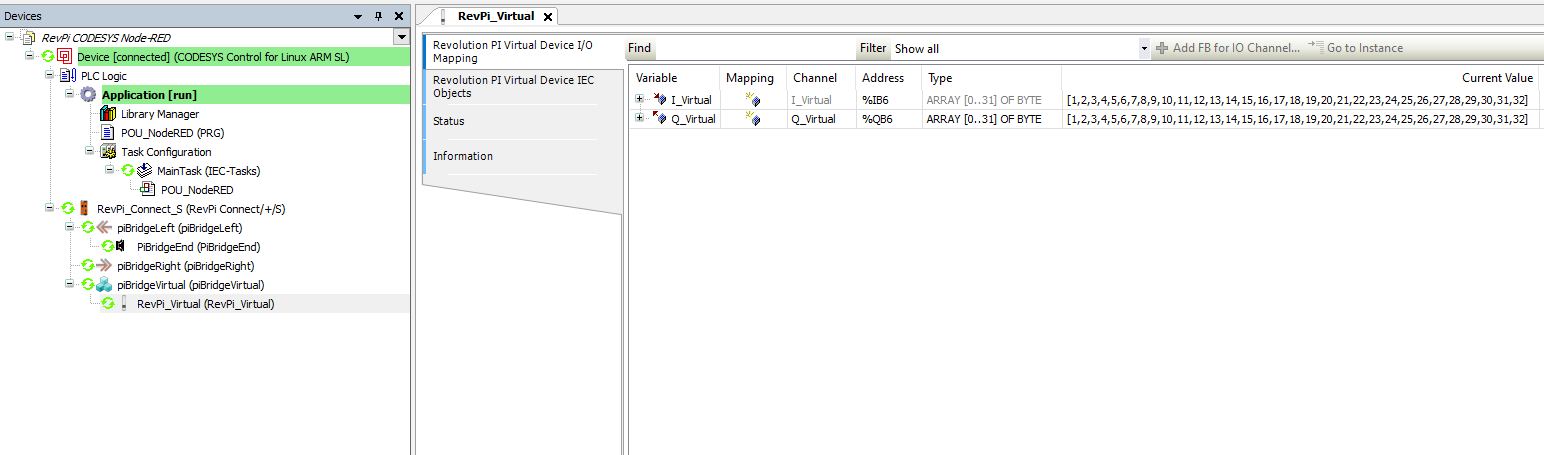

      • The values can be observed under I_Virtual inputs in the Revolution PI Virtual Device I/O Mapping tab.

    • In Node-RED Application:

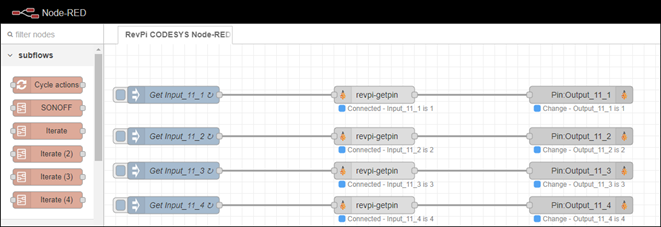

      • Connection status and values are displayed next to each revpi-getpin.

❯ The Node-RED application displays the connection status and value next to each revpi-getpin.

Node-red
